BELT AND BELT BOXES

Revenge of the Sith
  A New Hope
Hero
  A New Hope
Tour Suit
  Empire Strikes Back
Hero
  Empire Strikes Back
Stunt
  Return of the Jedi




Belt and Belt Boxes Facts

  Revenge of the Sith

Belt: 2" wide, plain black leather with horizontal incised lines set 1/8" in from the top and bottom edges. Secures in the back.

Belt Buckle: Black backplate - 3"x4", gloss black. Aluminum plate (maximum dimensions) - 3 1/4"x2 1/8"; 5 graduated slots with squared ends, from 1 1/2" to 3/8" in size. Aluminum circle - 1 1/2" circumference.

Lightsaber hook: None visible, but a removable Covertec clip may have been used.

Belt Boxes: 4 1/2"(length) x 3 1/8"(height) x1 1/2"(depth) Plastic, secured to belt at the back, lid attached at back. Mesh - 2 1/2"x 1/2" strip of ~1/16"x1/4" diamond mesh (flat). Red lights - Sylvania flat red lens and bezel. Green lights - 16mm square Grainger pilot lights. Metal nuts - 1/4" flanged 12 point bolts/high lock fastners (aircraft structural grade),

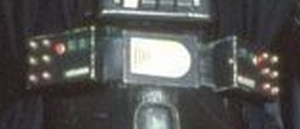

  A New Hope - Hero

Belt: 2 1/4" wide, plain black leather, secures with a pin and eye closure behind the belt buckle in front.

Belt Buckle: Black backplate - 4"x3", gloss black. Aluminum plate (maximum dimensions) - 2"x3 1/2"; 5 graduated slots with squared ends, from 1 1/4" to 3/8" in size. Aluminum circle - 1 1/2" circumference.

Lightsaber hook: Aluminum picture hanger secured on left side with two rivets.

Belt Boxes: 4 1/2"(length)x3 1/8"(height)x2"(depth) Metal, lid over the front, secured on sides with small screws. Mesh - front speaker cover from Telefunken Magnetophon Series 200, Models 200, 201, 203, 210, 230 in TS and Deluxe versions. Red lights - 8mm Sylvania flat red lens and chrome bezel. Green lights - Sloan Optoelectronics 10mm square front mount indicator lights. Metal nuts - push control buttons from a Barco Remote Controlled Video/Data Selector RCVDS 400.

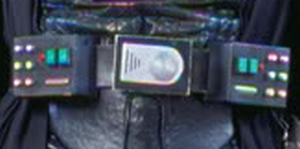

  Empire Strikes Back

Belt: 2 1/4" wide, plain black leather, closure in back.

Belt Buckle (estimated measurements): Black backplate - 4"x3", gloss black. Aluminum plate (maximum dimensions) - 3 1/2"x2 1/8"; 5 graduated slots with squared ends, from 1 3/8" to 1/4" in size. Aluminum circle - 1 1/2" circumference.

Lightsaber hook: Aluminum picture hanger secured on left side with two rivets.

Belt Boxes: 4 3/4"(length) x 3 1/8 "(height) x 2 "(depth) metal box. Flush lid secured on the back. Hose - transparent, braid reinforced air pressure hose. Red lights - Sylvania flat red lens but no bezel. Green lights - 16mm x 24mm rectangular Grainger pilot lights. Metal nuts - 1/4" aluminum thumbscrews.

Note: The stunt version has the belt closure in the front, behind the buckle, and is identifiable by the rivet to the left of the buckle.

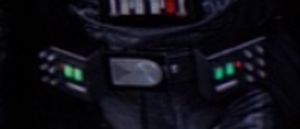

  Return of the Jedi

Belt: 2 1/4" wide, plain black leather with horizontal incised lines set 1/4" in from the top and bottom edges, secures with a pin and eye closure behind the belt buckle in front. Rivet to the right of the buckle..

Belt Buckle: Black backplate - 3"x4 1/2", gloss black. Aluminum plate (maximum dimensions) - 2 1/4"x3 3/4"; 4 or 5 (depending on the scene) graduated slots with rounded ends (4 slots) or squared ends (5 slots), from 1 5/8" to 1/4: in size (5 slots). Aluminum circle - 1 7/8" circumference.

Lightsaber hook: Aluminum picture hanger secured on left side with two rivets.

Belt Boxes: 4 3/8"(length) x 3 3/8 "(height) x 2 1/8"(depth). Flush lid secured on the back. Hose - transparent, braid reinforced air pressure hose. Red lights - Sylvania flat red lens with chrome bezel. Green lights - 16mm x 24mm rectangular Grainger pilot lights. Metal nuts - 1/4" aluminum thumbscrews.



Templates and Tutorials

ANH Buckle Template

Vadermaker Belt Buckle Template

ANH and ESB/ROTJ Beltbox Templates

ROTS Beltbox Template

ANH Beltbox Pattern

Vadermaker Beltbox Tutorial
